Manioc starch processing machine

Manioca tarch, also called cassava starch, is primarily produced by a range of manioc starch processing machine. But what are the mainly used manioc starch processing machine for manioca starch processing?

First, spiral cleaning conveyor. The spiral cleaning conveyor is one of the first manioc starch processing machine used. Its main purpose is to transport raw materials. It is usually made of stainless steel or carbon steel. It is characterized by easy operation, fast transportation and no leakage of materials.

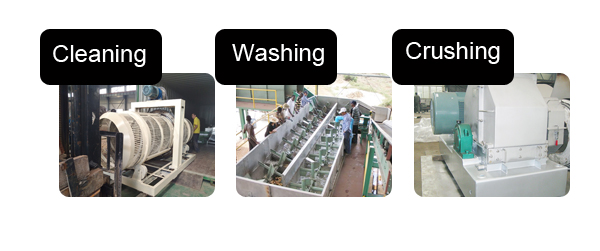

manioca starch processing machineManioc cleaning & cruahing machine

Second, paddle washing machine. The paddle washing machine in the production line of manioca starch is mainly for removing other debris such as sand and soil on raw materials. The material of this manioc starch processing machine can also be made of carbon steel or stainless steel, which is characterized by high processing energy, good washing effect, low power consumption and stable operation.

Third, crutting machine and secondary rasper. These two manioc starch processing machine are indispensable equipment for crushing cassava, and are characterized by high processing energy, easy installation and maintenance, secondary crushing of cassava, high crushing rate, high starch yield, and energy saving.

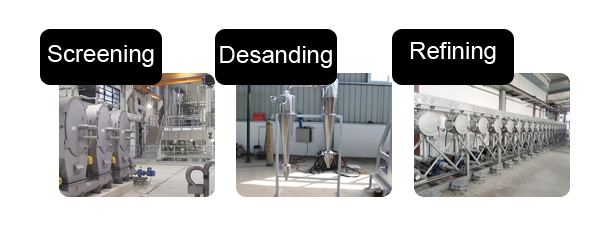

manioc starch processing machineManiocscreening, desanding & refining machine

Fourth, centrifuge sieve & fine fiber sieve. These two manioc starch processing machine are both used for separating starch pulp and slag and removing fiber impurities. They have good separation effect, no mesh blocking, low cost and low energy consumption.

Fifth, sand remover. After processing the above machine, the cassava also need to use a sand remover to remove the sand and impurities in the pulp residue, which can be also regarded as perform secondary screening.

Sixth, hydrocyclone unit. The hydrocyclone is a manioc starch processing machine mainly removes protein impurities to ensure starch whiteness.

Sixth, peeler centrifuge & airflow flash dryer. After a series of previous work, wet starch need to be firstly dehydrated by manioc starch processing machine to 38%-40%, a desirable moisture for starch drying. Then it is also necessary to use a dedicated flash dryer to dry the starch to make the starch dry and easy to store.

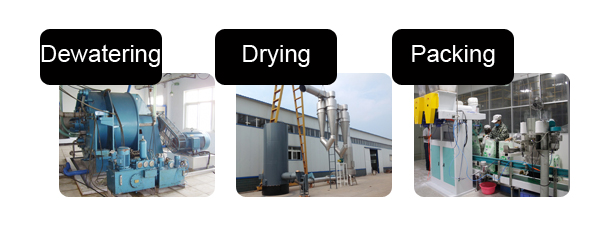

manioc starch processing machineManioc starch drying & packing machine

What should pay attentation when use these manioc starch processing machine

First, the amount of clean water should be controlled during use.

In the production process, the ratio of clean water to cassava should be well controlled. It will not only affect the quality of starch, but also affect the use of equipment. The manioc starch processing machine supplier recommends the weight ratio of cassava and clear water is preferably around 1:3 or 1:4. The washing machine should be filled with water before using the equipment, and then open the equipment to add the cassava into the washing machine. Note that the water in the water tank of the washing machine should be properly replaced according to the situation. At this time, although the manioc starch processing machine can work normally, the operator should pay attention to checka and inspection in order to eliminate fault finding in time.

manioc starch processing machineManioc processing

Second, the cleaness of the whole machine should be kept.

In the maintenance work of manioc starch processing machine, the cleaning work is also indispensable. It is recommended that the operator of the equipment should clean the whole manioc starch processing machine carefully after each oiperation, especially for the screen mesh of centrifugal sieve and the fine fiber sieve should be thoroughly cleaned. In order to avoid the congestion of the screen mesh, thereby reducing the efficiency of screening and affecting the starch quality. Meanwhile, do not use hard objects for equipment cleaning to avoid scratching the machine. It should be noted that in the process of cleaning, it is necessary to pay attention to whether the machine has abnormal noise at any time, and find problems in time for maintenance and treatment.

In summary, the above equipments belong to mainly used manioc starch processing machine, and these several kinds of equipment constitute the whole cassava starch production line. Only when these manioc starch processing machine work together, can we process raw cassava into starch that are easy for storage. Therefore, if there is demand, it is recommended to buy it from a professional supplier of manioc starch processing machine. Doing Company has decades years of experience of starch equipment manufacturer, with international advanced technology and professional equipment manufacturing engineer, your inquiry is welcomed.
