Cassava starch making production plant
Cassava is mainly used as food, feed and extract starch, which can be divided into two types: sweet and bitter. The sweet one can be used safely after peeling and cooking or slice drying. After detoxification, the bitter variety can also be eaten or fed, but it is mainly used for processing starch in cassava starch making production plant.
Cassava starch making production plant
The technical press of cassava starch in cassava starch making production plant are as follows:
Step 1: Raw material transportation and cleaning
The harvested cassava is firstly transported to the storage ground in cassava starch making production plant. Then it is transported by belt conveyor to the dry sieve to remove stone, weeds, leaves and other debris of cassava.
Step 2: Cassava washing
Together with cleaning, washing has an important influence on the subsequent processing. Therefore it is required to clean and wash cassava thoroughly to guarantee high quality starch.

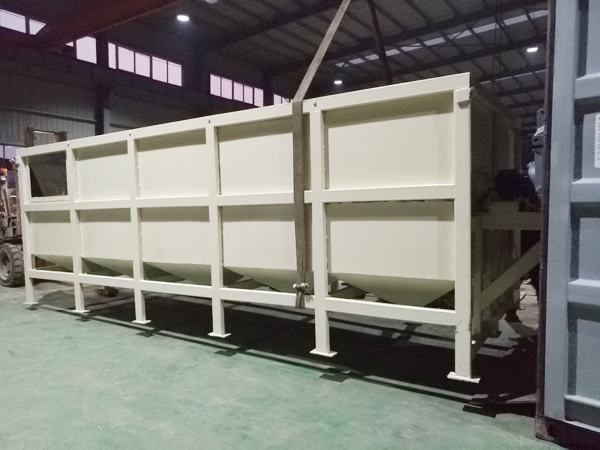

Cassava washing machine
Step 3: Cassava grating
In cassava starch making production plant, this step determines the starch yield. Grating serves to breaking the structure of cassava to achieve the purpose of releasing free starch. The more free starch, the higher starch yield. DOING rasper is a high efficient machine with cassava grating rate more than 94%.
Step 4: Starch and residue separation:
Using centrifuge sieve and fine fiber sieve to separate fibers out of starch slurry. In cassava starch making production plant, this is also a key step for starch extraction. Multi-stage centrifuge unit is adopted for better effect.
Step 5: Starch slurry desanding
Starch milk is injected into the desander through the starch pump to remove inorganic impurities such as mud and sand. It endures the taste of starch.

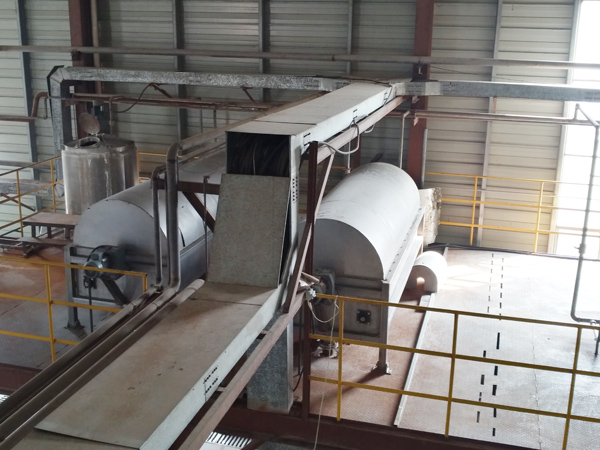

Cassava starch separating machine
Step 6: Concentration and refining
In cassava starch making production plant, protein and other organic and inorganic impurities need to be removed by hydrocyclone station. Doing Company adopts 18 stage cyclone group for three purpose: concentrating, refining and recycling. The whiteness of cassava starch is guaranteed in this step.
Step 7: Dehydrating
Peeler centrifuge is widely used for dehydrating in cassava starch making production plant. After dehydrating, the moisture content is about 38%-40%.DOING siphon type peeler centrifuge can improve production capacity by 50% and reduce water content to 36.5%.
Step 8: Drying and packing
The drying step follows dehydrating to dry starch to the desired quality. By adopting negative pressure drying, the whole process is completed in seconds in cassava starch making production plant. And this flash dryer is also equipped with cooling system to ensure the moisture uniformity of cassava starch.

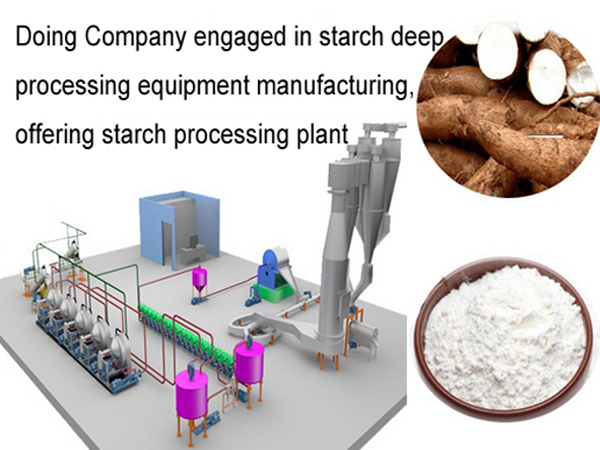

Doing Company service for cassava starch making production plant
As a professional starch processing machine manufacturer, Doing Company offer the following service:
1 All cassava starch making production plant engineering and technical transformation projects undertaken by Doing Company are carefully designed according to requirements of customers and fully communicated with customers to implement all kinds of contents.
2 For the equipment and materials required for the cassava starch making production plant project, Doing Company will equip customers with the industry recognized, advanced, sophisticated cassava starch equipment.
3 In the process of equipment manufacturing and installation, we monitor each link according to the design plan and production installation drawings, and equip each cassava starch making production plant project with professional equipment manufacturing and installation team to ensure the high quality and timely completion of each project.
4 In the commissioning phase, we arrange professional personnel to debug and guide, until the customer's cassava starch making production plant produces high quality starch products, and master the corresponding management technology.
5 After all the projects are completed according to the contract, with thoughtful service and business quality, China Doing Company provide customers with follow-up technical support, procurement of spare parts and wearing parts for cassava starch making production plant to ensure customer satisfaction.
