The 2 in 1 production line that can produce sweet potatoes and cassava into starch
Because each different crop growth cycle is different, resulting in different processing cycles per year, how can the same set of equipment process different two crops, staggered time to separate processing, which will maximize the efficiency of the equipment, but also solve the problem of long downtime, today we are mainly introduced the 2 in 1 production line that can produce sweet potatoes and cassava into starch.
First of all the biggest difference between cassava and sweet potato is that cassava itself has a harder inner skin. However because the processing of starch does not need to peel, this biggest difference does not need to be cared about, only needs to be cut off directly after cleaning, and then using the grinding machine for crushing can be the next step.
Cassava starch production line
After that, only the fluid slurry of crushed cassava pulp or sweet potato pulp needs to be fed into the centrifugal sieve and then separated into starch and fiber: then it passes through the fine residue sieve to remove the coarse fiber, leaving the rough cassava starch slurry or sweet potato starch slurry.
The rough cassava starch slurry or sweet potato starch slurry enters the cyclone for protein and cytosol separation, and the starch emulsion removes the protein and cytosol before using the cyclone so that a clean tapioca/sweet potato starch emulsion can be obtained.
The starch emulsion was dehydrated into wet starch with about 38% moisture by scraper centrifugal sieving and then put into a starch dryer for drying to obtain dry cassava/sweet potato starch.
Sweet potato starch production line

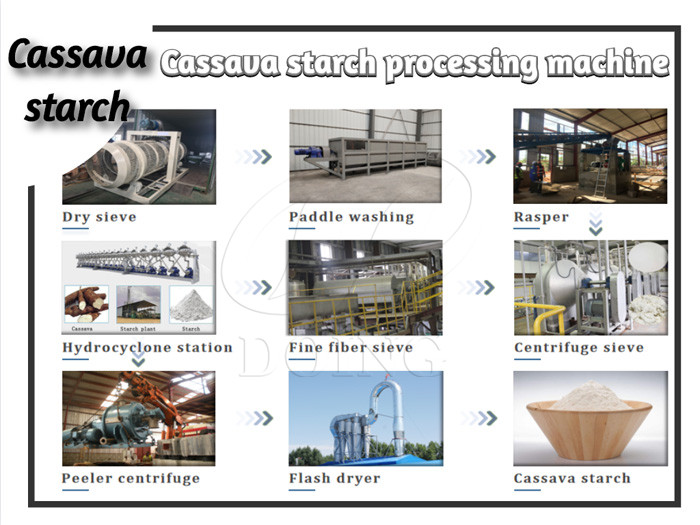

The cassava starch production line includes a dry sieve, paddle washer, cutting machine, rasper, centrifuge sieve, fine fiber sieve, desander, hydrocyclone station, peeler centrifuge, and flash dryer.

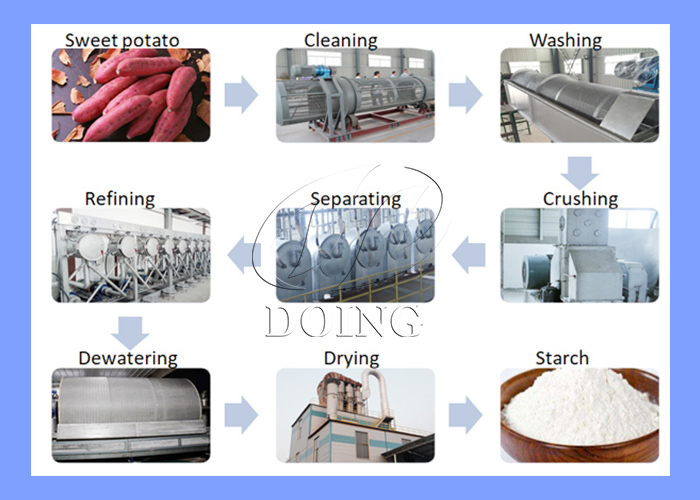

The sweet potato starch production line includes a dry sieve, rotary washing machine, cutting machine, rasper, centrifuge sieve machine, fine fiber sieve, desander, vacuum filter, hydrocyclone, flash dryer, and sifter sieve.
Due to the different fiber content of cassava and sweet potato starches, a few of these machines will be different. Henan Jinrui Company will provide customers with different sweet potatoes and cassava starch processing line configurations according to their specific needs.
