Cassava starch processing plant

product / Get Price / Chat Online 04-16,2019

Cassava starch processing plant takes cassava as raw material, the whole cassava starch production process is automatic operation, from raw material cleaning and washing, starch extraction, fine filtering, sand removal, concentration and purification, dehydration and drying etc. It takes only ten minutes for the raw material to be cleaned to the finished product which not only avoids the oxidative deformation of the material exposed to the air for a long time and the secondary pollution of dust and microorganism, but also greatly improves the production efficiency and product quality.

The cassava starch processing machines used in cassava starch processing plant are as follows:

Forklift, screw cleaning machine, paddle washing machine, cassava grinding machine, multi stage centrifuge sieve, fine fiber sieve, sand removal machine, starch enrichment and refining system, peeler centrifuge, flash dryer and packing machine

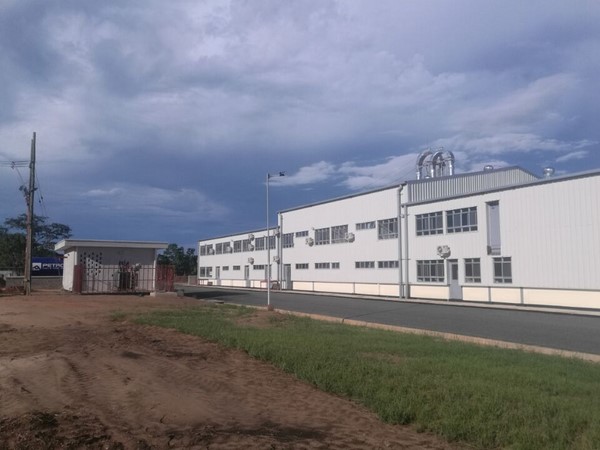

cassava starch processing plantCassava starch processing plant

And here are the introduction of cassava starch manufacturing process in cassava starch processing plant

1. Cassava selecting and transportation process

Fresh cassava is the main materials of cassava production which has an vital influence on the quality of cassava starch. Therefore the cassava need to be carefully selected to ensure the final products quality. The selected fresh cassava should without mud, sand, root, beard, wood and other impurities. And then the selected cassava is weighted and then transported into storage yard by forklift.

2. Cassava cleaning process

This is the first step for cassava starch processing in cassava starch processing plant. The cassava is transported into dry sieve by belt conveyor for cleaning. The sand, soil, weed, stone and other impurities are removed in this process.

cassava starch processing machineCassava washing machine

3. Cassava washing process

The cleaned cassava is then transported into paddle washing machine for further removing sand, soil, dirt and other attached debris. By adopting countercurrent washing principle, this washing machine can effectively remove the impurities.

4. Cassava crushing process

Then it comes to the most important procedure in cassava starch processing plant. The role of crushing is to destroy the structure of cassava, so that starch particles can be disassembled and separated from the root. The crushing rate plays a decisive role in the starch yield. The higher of the crushing rate, the higher of starch yield.

cassava starch extraction machineCassava starch screening machine

5. Cassava starch screening process

The original starch slurry after being crushing need to be screened to separate the starch milk from the fiber in cassava starch processing plant. At the same time, the fiber needs to recovery of starch by detergent. The purpose of separating is achieved by centrifuge sieve and fine fiber sieve. At present, it is generally adopts multi-stage screening or counterflow washing method.

6. Sand removal process

The coarse starch slurry comes out of fine fiber sieve still contains sand, which must be removed by a desander in cassava starch processing plant. The desander adopts specific gravity separation method for sand removal. The heavy substances sink to the bottom under the action of centrifugal force, while lighter substances (starch slurry) are concentrated in the center of the sand remover and are discharged from the upper part.

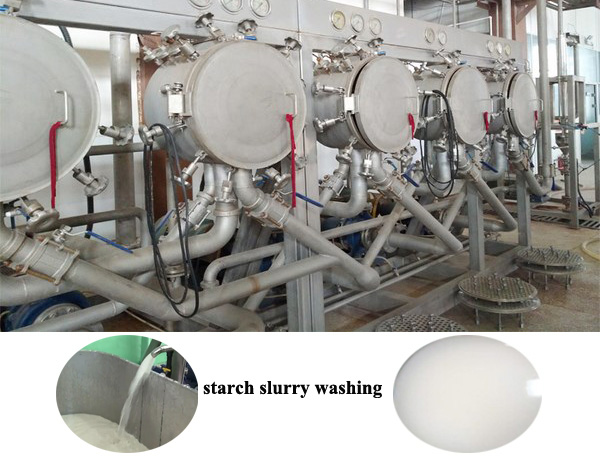

cassava starch extraction machineCassava starch refining machine

7. Starch enrichment and refining process

In cassava starch processing plant, the starch enrichment and refining process is to separate insoluble protein, residual soluble protein and other impurities from starch slurry so as to achieve the purpose of washing, refining and enrichment of starch milk. Hydrocyclone station is used for this purpose.

8. Cassava starch dehydrating process

After the separation process, the refined starch milk still contains a lot of water, so it must be dehydrated to facilitate drying. In cassava starch processing plant, peeler centrifuge is often used for dehydrating. The moisture content of wet starch after dehydration is required to be about 38%.

9. Starch drying and packing process

Drying is carried out after the dehydrating process in cassava starch processing plant. Flash dryer is the widely used cassava starch drying machine which features with high heat exchange rate and short drying time. The water content of starch product is about 13.5% through drying. Then the collected starch is packed for warehousing.
